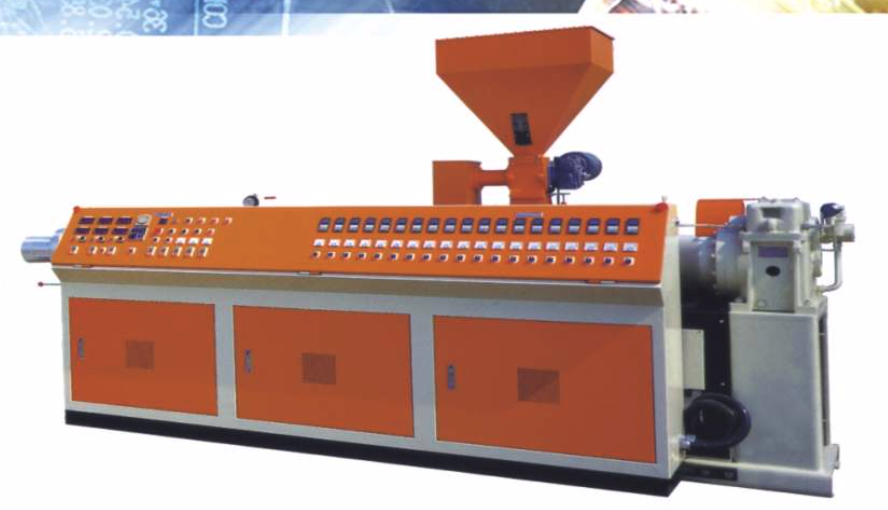

■ RIGID PIPE EXTRUDER(TWIN SCREW)
|
MODEL NO SPECIFICATION |
TH-90S |
TH-75S |
|---|---|---|
|
SCREW DIAMETER |
90Øm/m |
75Øm/m |
|
SCREW LENGTH L/D |
24:1 |
24:1 |
|
SCREW MATERIAL |
HIGH PRECISION MATERIAL EUROPEAN STANDARD |
|
|
CYLINDER MATERIAL |
||
|
HEATING |
ELECTRICITY |
|
|
COOLING |
OIL COOLING SYSTEM |
|
|
HEATING ZONE |
18 |
12 |
|
HEATING CAPACITY |
50Kw |
30Kw |
|
SPECIAL ALTERNATIVE DEVICE |
ELECTRICITY LEAKAGE ALARM EQUIPPED |
|
|
SCREW PROTECTION DEVICE |
||
|
GEAR BOX |
HIGH PRECISION MATERIAL EUROPEAN STANDARD |
|
|
RETATE |
AT DIFFER DIRECTION |
|
|
TYPE |
TWIN SCREW |
|
|
REDUCER RATIO |
28:1 |
28:1 |
|
SCREW SPEED |
5-50 |
6-60 |
|
OIL AUTO CIRCUIT SYSTEM |
20#OIL AUTO CIRCUIT |
|
|
MAIN MOTOR |
75HP INV. |
40HP(Frequency) |
|
FEEDING RECORDER |
SINGLE SCREW |
|
|
MOTOR |
1 HP INV. FREQUENCY CONTROLLER |
|
|
CENTER OF MACHINE |
1100m/m |
1100m/m |
|
CAPACITY |
200~400kg/Hr |
120~180kg/Hr |
|
REMARK |
MACHINE DESIGN RIGHTS KEPTS BY MAKER |
|
■ WATER TROUGH COOLING ＆ FORMING MACHING
|
MODEL NO SPECIFICATION |
WT-90S |
WT-75S |
|---|---|---|
|
VACUUM PUMP |
20HP |
10HP |
|
FORWARD CONTROL |
ELECTRIC |
|
|
UP/DOWN CONTROL |
ELECTRIC |
|
|
LEFT/RIGHT CONTROL |
MANUAL |
|
|
STRAT WATER |
5HP WATER PUMP |
|
|
DIMENSION |
Water Trough SUS Made |
|
■ CATERPILLAR TAKE UP MACHINE
|
MODEL NO SPECIFICATION |
TM-90S |
TM-75S |
|---|---|---|
|
MAIN MOTOR |
7-1/2HP INVERTER |
3 HP INVERTER |
|
REDUCER RATION |
1/120# |
1/100# |
|
OPERATION |
BELT;CHAIN;CONNECTOR |
|
|
DRIVE LENGTH |
2000m/m |
1200m/m |
|
CHAIN |
MANY POINTS TYPE |
2 POINTS TYPE |
|
MOVABLE |
UP/DOWN AIR COMPRESSOR |
|
■ AUTO CUTTING UNIT & COLLECTING UNIT
|
MODEL NO SPECIFICATION |
TSC90S |
TSC65S |
|---|---|---|
|
MAIN MOTOR |
2HP×2P |
2HP×2P |
|
LENGTH CONTROL |
SWITCH CONTROL |
|
|
OPERATION |
ELECTRIC/AIR PRESSURE |
|
|
DUST COLLECTOR |
1HP DUST COLLECTOR |
|
|
SAW |
CHIPLESS WHEEL CUTTING |
|
|
MOVABLE |
LEFT/RIGHT MOVABLE |
UP/DOWN MOVABLE |
|
AUTO CACULATOR |
Auto Calculator |
|
